Mockup Frenzy #3: Game Boy De-Makes!

on: September 17, 2007, 07:47:48 pm
Mockup Frenzy #3: Game Boy De-Makes!



Resolution: 160x144
Colors: 4 (see images below for examples)
Theme: De-Makes
Start Day: September 17th, 2007
Deadline: September 30th, 2007
Notes: To sum up, de-makes are the inverse of the "next-gen" game update.  Take a new game, and roll it back to an older piece of hardware.  Only we're going to be rolling it WAY back; all the way to the original Game Boy!  Goldeneye 2D is a perfect example, and the inspiration for this theme!  To help you get started, I've included a few choice screens from the better-looking GB games of the past.  Feel free to use any of the palettes in these images, or invent your own 4 color monochrome ramp!


(Castlevania II, Spiderman 3, Tiny Toons, Trip World, Universal Soldier)

You're welcome to follow the strict Game Boy spec, but it is not a requirement for this competition.  The basic specs for the system are as follows:
  • 2-bit color (black, dark grey, light grey, white)
  • 8x8 tiles
  • 8x8, 8x16 and 16x8 sprites
  • 1 4-color bg palette
  • 2 3-color sprite palettes (that must choose from same 4 colors as the bg)
  • Background tiles each get a foreground/background flag
  • No more than 10 sprites per scanline on the raster



Is this your first Mockup Frenzy?  Why not check out the rules & results from Mockup Frenzy #1: Mobility! and Mockup Frenzy #2: Ninjas!



RESULTS:

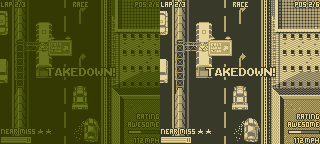

Lackey, Lackey, Lackey, AlienQuark, AlienQuark:


CroM, Helm, HMC, Radek Smektala, Ego:


.TakaM, .TakaM, KhrisMUC, KAT, infinity+1:


am_pm, Judas, Judas, Judas, telecommtubbie:


Arachne, vpk, Arne, mattness, opacus:


Quicksilva, Greenwing, D.W., D.W., D.W.:


Doppleganger, pkmays, Jad, kite, KAT:


KAT, robotriot, baccaman21, MaDsk8tard:


Arachne, Arachne, Rydin, Schu, Schu:


QuickSilva, Bouzolf:


HOLY CRAP.  47 ENTRIES!  YOU GUYS ARE AWESOME!
« Last Edit: March 08, 2019, 06:24:26 am by Kiana »

Offline AlienQuark

  • 0010
  • *
  • Posts: 146
  • Karma: +0/-0
  • be triangular
    • View Profile

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #1 on: September 17, 2007, 08:15:57 pm
Hey Adam, could you clarify for me the Gameboy restrictions? It's a little bit complicated/confusing for me to understand, specifically the whole character sprites being on the same raster or what have you. Examples would probably work best, like just describe for me a no-no situation.

I wanna try and stick to the strict rules. Give myself a real challenge, so the sooner you help me out the better!  :crazy:

Offline AdamAtomic

  • 0100
  • ***
  • Posts: 1188
  • Karma: +0/-0
  • natural born medic
    • View Profile
    • Adam Atomic

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #2 on: September 17, 2007, 08:49:22 pm
the raster rule is basically this.  the gameboy screen is 144px tall, so it has 144 raster lines, or lines of pixels that the hardware blits.  Not sure the exact specifics of why, but you may only have up to 10 sprites overlappign the same raster line.  So if you have ten sprites at 8x8 whose upper left corner's Y value is between 136 and 144, then the hardware will start to have some troubles.  Lots of games get around this by keeping track, and flickering sprites that occupy the same space.  Unfortunately, for mockup purposes, flickering doesn't matter much!  If you want though you could make an animated .gif that featured flickering assets to preserve the 10 sprites per line rule :)

Lemme know if that makes more sense!

As for the other somewhat confusing specs:

Background tile palette: every background tile can use any of the 4 colors.
Background tile priority: each tile has a 0 or 1 that determines whether or not it is drawn in front of or behind the sprites.  This doesn't matter a TON for mockups either, but still interesting!  However, I believe it works across whole tiles; so you couldn't have half a tile covering up part of a sprite, or something, because tiles don't have transparency.
Sprite palettes: this one is pretty weird, even I admit that, but it does actually make sense.  Since the GB only has 4 colors, and sprites need at least 1 color slot for transparency, the GB lets you use up to 2 different palettes for your sprites, each (one would assume) indicating a different color for transparency.  E.g. palette one might mark black as the transparent color, for bright sprites on a dark background, while palette two might have white as trans, which would be good for making dark sprites over a light background.  If you look at each of the screenshots above you'll see that nearly all of their sprite palettes drop one or the other of the grays, to keep sprite contrast high.

Lemme know if you have any more questions!

Offline AlienQuark

  • 0010
  • *
  • Posts: 146
  • Karma: +0/-0
  • be triangular
    • View Profile

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #3 on: September 17, 2007, 09:16:26 pm
Ok one last question and then I believe I'll be fully ok for my mockup, which I have now started....

Can character sprites be composed of more than one actual sprite? because those ones look bigger than 8x16 OR 8x8, so I'm assuming you can stack sprites to make a bigger hero/ enemy, as long as no more than 10 of them overlap? Am I getting that right?

Anyways, I think I'll try my best to stick to restrictions, but if i mess up, oh well, this is my first time working in only 4 colours. Expect an actual screenie soon!

Offline AdamAtomic

  • 0100
  • ***
  • Posts: 1188
  • Karma: +0/-0
  • natural born medic
    • View Profile
    • Adam Atomic

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #4 on: September 17, 2007, 09:18:27 pm
Yes absolutely.  Very common practice for what we perceive to be 1 sprite to be made up of anywhere from 2 to 8 sprites, lots of NES games did this too!

Offline Faktablad

  • 0011
  • **
  • Posts: 526
  • Karma: +0/-0
  • grow
    • View Profile
    • Couchpixel

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #5 on: September 17, 2007, 11:54:50 pm
So are these raster lines horizontal, vertical, or both?

Offline Lackey

  • 0010
  • *
  • Posts: 134
  • Karma: +1/-0
  • remember to drink cure potions
    • View Profile

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #6 on: September 17, 2007, 11:56:55 pm
Woo, first  :)



I assume unlimited tiles and sprites for these, I would of course optimize if I were to actually put this on a Gameboy.  I used my own radioactive spinach palette which I eyeballed from pictures of an actual Gameboy.

Offline AdamAtomic

  • 0100
  • ***
  • Posts: 1188
  • Karma: +0/-0
  • natural born medic
    • View Profile
    • Adam Atomic

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #7 on: September 18, 2007, 12:13:03 am
And the gauntlet, my friends, has been thrown.

Offline Helm

  • Moderator
  • 0110
  • *
  • Posts: 5159
  • Karma: +0/-0
    • View Profile
    • Asides-Bsides

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #8 on: September 18, 2007, 12:31:42 am
I will... DEFEAT YOU.

Offline So-lou

  • 0001
  • *
  • Posts: 5
  • Karma: +0/-0
    • View Profile

Re: Mockup Frenzy #3: Game Boy De-Makes!

Reply #9 on: September 18, 2007, 01:28:13 am

Looove the alien in the second one  ;D
