Space is trying to kill us. Honestly, that’s the simplest way to look at it. When the Orion spacecraft comes screaming back toward Earth after a trip around the Moon, it’s hitting the atmosphere at roughly 25,000 miles per hour. That is fast. It's "turning the air around you into a literal blowtorch" fast. To survive that, you need more than just a thick hull. You need a masterpiece of material science, and that's where the Orion capsule heat shield comes in.
But here’s the thing: after the Artemis I mission in late 2022, NASA realized they had a bit of a mystery on their hands.
The shield worked. The capsule splashed down. But it didn't look exactly how the engineers expected it to. Instead of a smooth, uniform charring, the protective material—called Avcoat—was flaking off in chunks. This phenomenon is called "spallation," and it’s been the center of a massive internal debate within NASA for the last few years. If we're going to put humans on Artemis II, we have to be certain that the heat shield isn't just "good enough," but bulletproof.
What is the Orion Capsule Heat Shield Actually Made Of?
It isn't just a slab of metal. If you used metal, the crew inside would basically be baked in a giant convection oven. NASA uses a substance called Avcoat. It’s a specialized epoxy novolac resin with silica fibers and chemical additives. It’s an "ablative" material.
Basically, it’s designed to burn away.

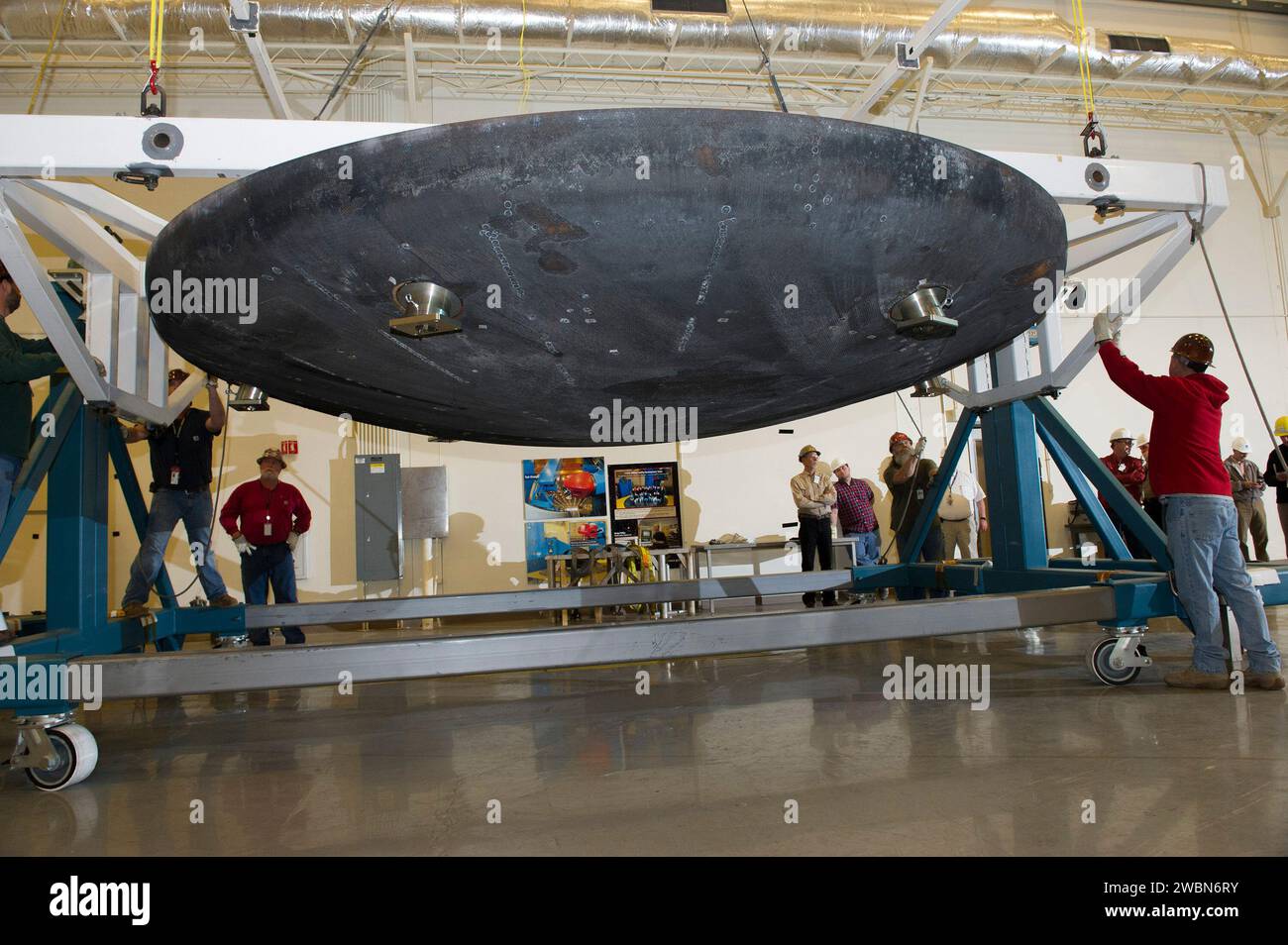

As Orion hits the atmosphere, the outer layer of the Avcoat chars, melts, and eventually breaks off, carrying the intense heat away from the spacecraft. Think of it like a lizard shedding its skin, except the skin is on fire and moving at Mach 32. The shield itself is a massive 16.5 feet in diameter, making it the largest of its kind ever built. It’s composed of a titanium frame and a carbon-fiber skin, with roughly 5,000 individual cells filled with that Avcoat resin.
Back in the Apollo days, technicians literally used caulking guns to fill these cells by hand. Today, it’s more high-tech, but the physics remains the same. The goal is to keep the crew cabin at a comfortable room temperature while the outside of the shield reaches a staggering $5,000^{\circ}F$. That's half as hot as the surface of the sun. It's wild to think about.
The Artemis I Charring Mystery
When the uncrewed Artemis I mission returned from its record-breaking flight around the Moon, the visual inspection of the Orion capsule heat shield raised some eyebrows.
Engineers saw more "liberated" material than they expected.
Instead of wearing down like a pencil eraser—which is what the computer models predicted—the Avcoat was chipping. NASA’s Associate Administrator for the Exploration Systems Development Mission Directorate, Catherine Koerner, and other leaders had to face a tough question: Why?
They spent over a year digging into the data. They used X-rays, thermal testing, and even recreated the reentry conditions in plasma wind tunnels. What they found was that the material was behaving slightly differently in the actual vacuum and thermal cycles of deep space than it did in ground tests. It’s a classic case of "you don't know what you don't know" until you actually fly the thing.
The concern wasn't that the shield failed—it didn't. The capsule stayed safe. The concern was whether those flying chunks of char could damage other parts of the spacecraft, like the parachutes.
Why We Can’t Just Use the Space Shuttle Tiles
A lot of people ask why we don't just use the black tiles from the Space Shuttle. Those were reusable, right?
Well, the Shuttle was an orbiter. It was coming back from Low Earth Orbit (LEO) at around 17,500 mph. Orion is coming back from the Moon. That extra 7,500 mph sounds like a lot, but because kinetic energy increases with the square of velocity, the heat load on Orion is actually about twice as high as what the Shuttle faced.
- Shuttle tiles were ceramic and didn't burn away.
- Orion's Avcoat must burn away to survive the Moon-return speeds.
- The physics of deep space reentry is just a different beast entirely.
Engineering a Solution for Artemis II
NASA has finally decided how to move forward for the crewed Artemis II mission. After months of "will they or won't they" regarding a redesign, the agency decided to stick with the current heat shield design but with some crucial modifications to how they process and inspect the material.
They've done the math. They’ve run the simulations. The consensus is that even with the chipping, there is enough "margin"—basically extra thickness—to keep the astronauts safe.
But it’s a calculated risk. Spaceflight always is.
The heat shield for Artemis II has already been installed. It’s a monolithic structure now, and they’ve used the lessons from the "spallation" mystery to ensure the application of the Avcoat is as perfect as humanly (and robotically) possible.
The Hidden Complexity of the "Gap Fillers"
It’s not just the Avcoat. Between the different sections of the shield and the spacecraft, there are gap fillers and thermal barriers. During the Artemis I reentry, some of these also showed unexpected wear.
These tiny details are what keep engineers up at night. If a hot jet of gas finds a tiny pinhole in a gap filler, it can act like a plasma torch, cutting into the structure of the ship. This is what happened to the Space Shuttle Columbia, though that was caused by foam impact, not a design flaw in the material itself. NASA is being extra cautious because the Orion capsule heat shield is the only thing standing between the vacuum of space and the Pacific Ocean.
How Orion Compares to SpaceX’s Starship
It’s impossible to talk about heat shields today without mentioning Elon Musk and Starship. SpaceX is taking a totally different route. While NASA uses an ablative shield that you have to partially replace or heavily refurbish, SpaceX is trying to use hexagonal ceramic tiles that can (theoretically) fly again and again with zero maintenance.
👉 See also: Using iPhone 16 Pro: What Most People Get Wrong
Which is better?
It depends on the goal. NASA's Orion is built for maximum reliability on a specific mission profile: lunar return. The Avcoat technology is proven, even with the recent chipping issues. Starship is an experiment in rapid reusability. During its recent flight tests, we saw Starship tiles flying off and the "flap" area nearly burning through.
NASA's approach is more conservative. They are okay with the shield being "sacrificial" because the priority is the safety of the four humans sitting just a few feet away from the fire.
What Happens if the Heat Shield Fails?
It’s the nightmare scenario. If the heat shield loses structural integrity, the underlying titanium structure would melt in seconds. The interior of the capsule would depressurize and incinerate.
This is why the testing is so grueling.
They don't just test for heat; they test for "micrometeoroid and orbital debris" (MMOD). Imagine a tiny piece of space junk, the size of a grain of sand, hitting the heat shield while Orion is in orbit. It’s traveling so fast that it acts like a bullet. If it creates a deep enough crater, that becomes a "weak spot" during reentry.
NASA actually builds "intentional defects" into test shields to see how they handle the heat. They literally break it on purpose to see if it still works. That's the level of paranoia required for deep space exploration.
Actionable Insights for Space Enthusiasts and Future Engineers
If you’re following the progress of the Artemis missions, there are a few things you should keep an eye on as we approach the launch of Artemis II.
- Watch the Post-Flight Reports: NASA is much more transparent than people think. After Artemis II, the inspection of the Orion capsule heat shield will be the first thing the "technical types" look at.
- Understand the Margin: In engineering, "margin" is everything. The shield is significantly thicker than it needs to be. This is why the chipping on Artemis I wasn't a catastrophe.
- Follow the Material Science: If you're a student, look into "high-enthalpy flow" and "thermochemistry." These are the fields that make heat shields possible.
- The "Skip Reentry" Maneuver: Orion uses a unique "skip" reentry where it hits the atmosphere, bounces back up slightly like a stone on water to bleed off speed, and then dives back in. This helps spread out the heat load, which is a clever way to help the heat shield do its job.
The Orion capsule heat shield is a bridge. It’s a bridge between the Moon and Earth, and between the old way of doing things and the future of Martian exploration. It’s not perfect—no machine is—but it’s the most advanced thermal protection system ever flown on a human-rated spacecraft. As we get closer to the next launch, the focus will remain on those five thousand cells of resin, holding back the fire.
