You know that feeling when you're staring at a tangled mess of black tubing, your hands are covered in dirt, and a tiny plastic connector just snapped? It's frustrating. Honestly, 1 4 inch drip irrigation fittings are the unsung heroes—and occasional villains—of the modern backyard. They're small. They're cheap. But if you get the wrong one, or push it too hard, your prized tomatoes are going to be bone dry by Tuesday.
Most people think a connector is just a connector. It isn't.
We’re talking about the vascular system of your garden. If the main 1/2-inch line is the aorta, these tiny 1/4-inch lines are the capillaries. They get the water exactly where it needs to go: the root zone. But there is a massive difference between the junk you find in a bargain bin and the professional-grade stuff used by actual landscapers.
The truth about friction fit vs. barbed 1 4 inch drip irrigation fittings
Here is something nobody tells you at the big-box hardware store. Not all "barbs" are created equal. If you look closely at a high-quality 1 4 inch drip irrigation fitting, like those from Rain Bird or Netafim, the barb has a sharp, defined edge. This isn't for aesthetics. That sharp edge bites into the inner wall of the vinyl or polyethylene tubing.
Cheap fittings? They have rounded barbs. They look smoother, sure, but they slip. The moment the summer sun hits those lines and the plastic softens, the water pressure will pop that line right off. You’ll come home to a miniature geyser and a flooded patio.
You've got a few main types of these connectors to worry about:
✨ Don't miss: The Long Haired Russian Cat Explained: Why the Siberian is Basically a Living Legend
- Straight Couplers: These just link two pieces of 1/4-inch line. Use them when you accidentally cut a line too short (we’ve all been there).

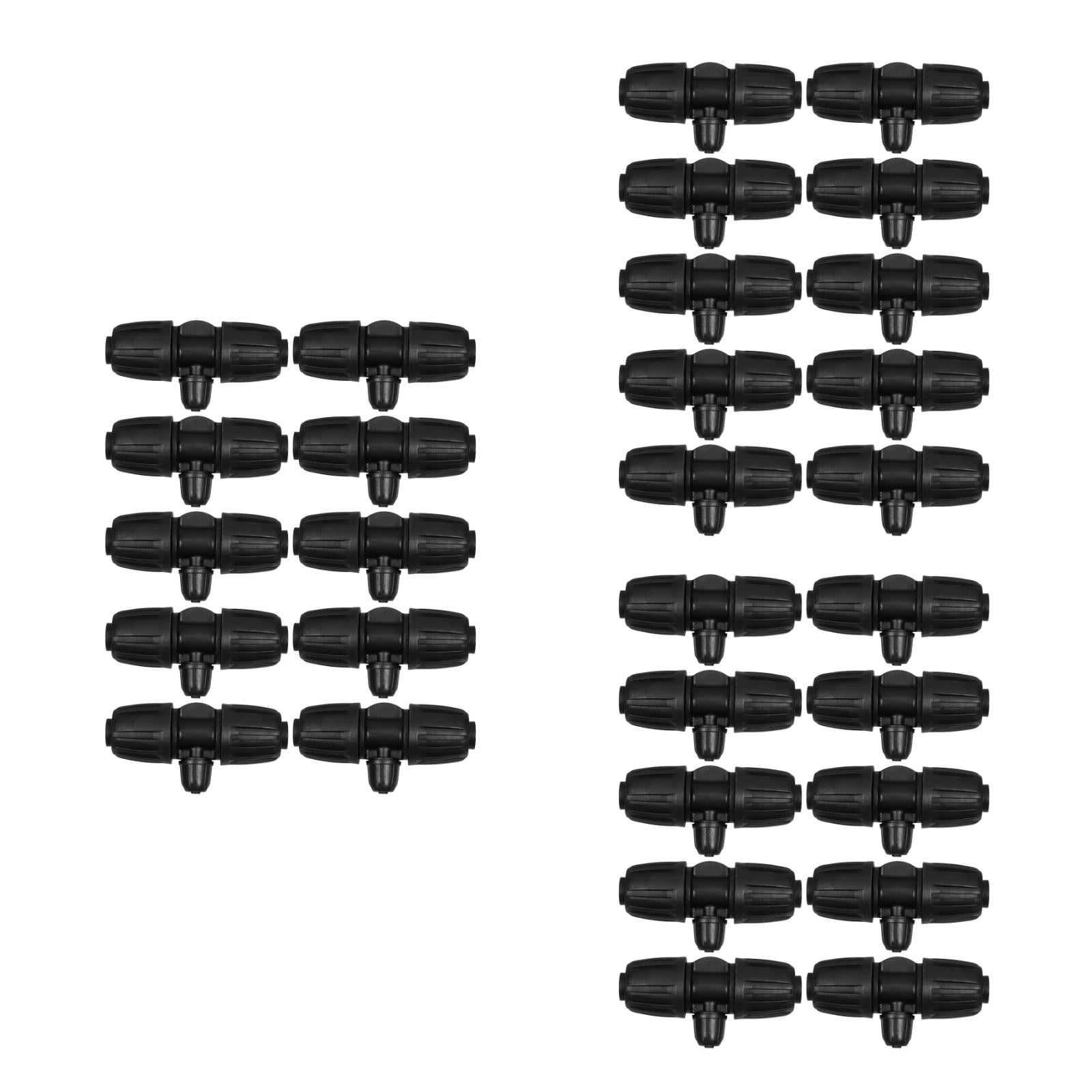

- Tees: These are the workhorses. They let you split one line into two. Essential for circling the base of a large shrub or hitting two pots sitting side-by-side.
- Elbows: Use these for 90-degree turns. If you try to bend the tubing itself at a sharp angle, it kinking. A kinked line is a dead line.
- Transfer Misters and Goof Plugs: If you punch a hole in the main line in the wrong spot, a goof plug is the only thing saving you from buying a whole new roll of pipe.
Why your 1 4 inch drip irrigation fittings keep popping off
Pressure is the silent killer. Most residential outdoor faucets put out anywhere from 40 to 70 PSI. That is way too much for 1 4 inch drip irrigation fittings to handle long-term.
If you aren't using a pressure regulator, you’re basically playing Russian roulette with your plants. These tiny fittings are generally rated for about 25 to 30 PSI. Anything more, and you’re stressing the plastic. Eventually, the "creep" of the plastic under heat and pressure causes the fitting to fail.
Pro Tip: If you're struggling to get the tubing onto the fitting, don't use soap. Soap can actually act as a lubricant later and help the tube slide back off. Instead, carry a thermos of hot water. Dip the end of the tubing in the hot water for about 10 seconds. It softens the plastic just enough to slide over the barb, and then it shrinks down for a permanent, "shrink-wrap" fit as it cools.
The Vinyl vs. Polyethylene debate
What you're plugging those fittings into matters as much as the fitting itself.
Vinyl is soft. It’s easy to work with. It's also prone to "memory," meaning if it gets a kink, it stays kinked.
Polyethylene (PE) is stiffer. It's harder to get the 1 4 inch drip irrigation fittings into PE tubing, but once they're in, they stay. Most pros prefer PE for the "spider" lines because it holds up better under the UV rays of a brutal July.
Spotting the quality difference
When you’re holding a handful of fittings, look at the "flash"—that’s the thin line of leftover plastic from the molding process. If a fitting has a lot of flash on the barb, it won't seal correctly. It'll slow-drip from the connection point.
🔗 Read more: Why Every Mom and Daughter Photo You Take Actually Matters
Also, check the material. You want UV-inhibited ABS or high-density polyethylene. If the plastic feels brittle or looks "shiny" like a cheap toy, it's going to crack after one winter. Brands like Antelco or DIG Corporation are usually the gold standard here. They use heavy-duty polymers that can handle the expansion and contraction of soil and temperature.
Layout mistakes that kill your water pressure
You can't just run 100 feet of 1/4-inch line. You just can't.
Physics is a jerk. There is something called "friction loss." Because the pipe is so narrow, the water rubbing against the walls of the tube slows down significantly. If you run a 1/4-inch line longer than 30 feet, the plants at the end of the line will get a pathetic trickle while the ones at the start get a fire hose.
Keep your 1 4 inch drip irrigation fittings and lines to a maximum of 15-20 feet from the main 1/2-inch lateral line. This ensures every emitter gets the same volume of water. If you have a long row of pots, run a 1/2-inch "trunk" line behind them and use 1 4 inch drip irrigation fittings to "tap" into that trunk for each individual pot.
The "Goof Plug" Savior
Let's talk about the most important 1 4 inch drip irrigation fitting that isn't actually a connector: the goof plug. These are tiny, double-ended plastic nubs. One side is small, one side is slightly larger.
💡 You might also like: Sport watch water resist explained: why 50 meters doesn't mean you can dive
If you decide to move a plant and need to remove the 1/4-inch line from the main 1/2-inch pipe, you're left with a hole. You can't just tape it. You shove a goof plug in there. Always buy a bag of 50. You will lose them in the dirt. You will need them when you realize your initial irrigation plan was a disaster. It happens to everyone.
Getting the job done right
So, you're ready to build. Don't just start stabbing holes in things.
First, lay your tubing out in the sun for an hour. It makes the plastic supple and much easier to handle. Use a dedicated hole punch tool—not a nail or a screwdriver. A real punch creates a clean, circular hole that stretches around the 1 4 inch drip irrigation fittings for a water-tight seal.
When you push the fitting into the main line, you should hear or feel a "pop." That’s the barb clearing the wall of the pipe. If it doesn't pop, it's not in all the way.
Maintenance and Winterization
If you live somewhere where the ground freezes, these fittings are the first thing to break. Water expands when it freezes. If it's trapped inside a tiny 1/4-inch tee, it will split the plastic right down the seam.
Blow out your lines with compressed air in the fall. If you don't have a compressor, at least disconnect the main assembly from the faucet so the system can gravity-drain.
Actionable steps for your irrigation project
- Audit your pressure: Buy a $10 pressure gauge that threads onto your hose bib. If it's over 30 PSI, buy a pressure regulator before you buy your 1 4 inch drip irrigation fittings.
- Choose your tubing wisely: Match your fittings to your tube. Some "1/4 inch" tubing is actually 6mm, while others are slightly larger. Buying fittings and tubing from the same manufacturer eliminates the "it doesn't fit" headache.
- Use the "Hot Water" trick: Keep a small thermos of near-boiling water with you while you work. It will save your thumb and forefinger from being raw and blistered by the end of the day.
- Buy in bulk: Buying 10-packs at the local hardware store is a ripoff. Go to a dedicated irrigation supply site and buy a bag of 100. You'll use them over the years, and the per-unit cost drops from 50 cents to about 5 cents.
- Check for leaks immediately: Turn the water on before you bury anything or cover the lines with mulch. It’s a lot easier to fix a loose 1 4 inch drip irrigation fitting when you can actually see where the spray is coming from.
Don't overcomplicate it. Drip irrigation is just Lego for gardeners. Once you understand that the 1 4 inch drip irrigation fittings are the weakest link in the chain, you can reinforce them, treat them right, and spend your summer actually enjoying your garden instead of fixing leaks.
