You're stuck in traffic. Again. You look up and see a massive concrete structure where all the left-turn signals seem to happen at once, right in the middle of the bridge. It looks chaotic, but somehow, the line is moving. You’ve likely just driven through a single point urban interchange, or a SPUI for short. Engineers love them. Drivers are often terrified of them the first time they see one.
But here's the thing: it works.
The SPUI isn't just another overpass. It is a specific, highly engineered solution to a very modern problem: we have too many cars and not enough land. Developed in the 1970s—the first one actually went up in Clearwater, Florida, in 1974—this design was meant to solve the "diamond problem." In a standard diamond interchange, you have two different intersections with two different sets of lights. That means two places to stop. Two places to crash. Two places for the whole system to break down.

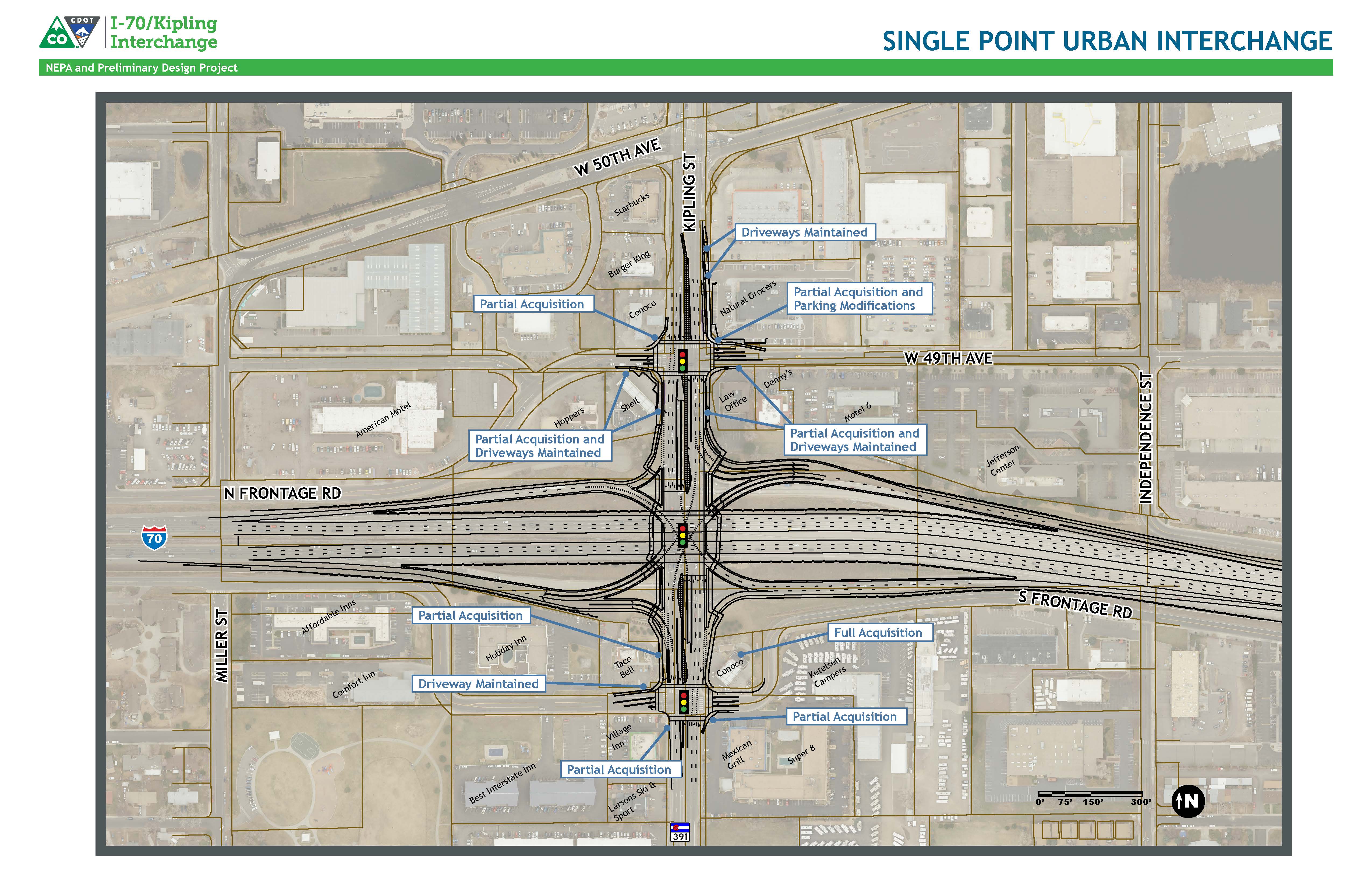

A single point urban interchange collapses those two intersections into one. Everything happens at a single point, usually right in the center of the overpass or underpass. It’s elegant. It’s expensive. And honestly, it’s probably the reason your commute doesn't take twenty minutes longer than it already does.
How a SPUI Actually Functions Under Pressure
Think about a traditional intersection. You want to turn left, so you wait. The people coming toward you also want to turn left. In a normal setup, you’re basically dancing around each other. In a single point urban interchange, that dance is choreographed by a single traffic controller.
Because all the left turns originate from a single central point, the "clearing time" for the intersection is significantly reduced. Large radius turns allow vehicles—including massive semi-trucks—to move at higher speeds than they would at a 90-degree city corner. You aren't just inching around a tight curb; you're sweeping through a wide arc.
This design allows for "opposing left turns." This is the secret sauce. Imagine two cars, both wanting to turn left onto the highway on-ramp from opposite directions. In a SPUI, they can both make that turn simultaneously without ever crossing each other's paths. It doubles the capacity for the most difficult move in driving.
It’s not all sunshine and rainbows, though. The sheer size of the intersection means the "yellow light" phase has to be incredibly long. If you’re halfway through a 150-foot wide intersection when the light turns red, you need time to get out of the way. If the timing is off, the whole thing becomes a concrete deathtrap.
The Big Bridge Problem
Building these things is a nightmare for civil engineers. Because everything meets in the middle, you need a massive bridge span. We aren't talking about a few steel beams. You often need a single-span bridge that can be over 200 feet long without any supporting pillars in the middle of the highway below.
📖 Related: How to edit a YouTube video without losing your mind or your audience
Why no pillars? Because those pillars would be right where the cars are trying to drive.
This makes a single point urban interchange significantly more expensive than a traditional diamond. You're paying for specialized long-span girders or post-tensioned concrete. In places like Utah or Arizona, where SPUIs are everywhere, the state departments of transportation (DOTs) have decided the cost is worth it because the alternative is buying up miles of expensive commercial real estate to widen the road.
Why Civil Engineers Choose the SPUI Over the Diverging Diamond
If you’ve been following infrastructure trends, you’ve heard of the Diverging Diamond Interchange (DDI). It’s the SPUI’s main rival. While the DDI crosses traffic to the "wrong" side of the road to make left turns easier, the SPUI keeps everyone on their side but funnels them to the center.
The SPUI wins when land is at a premium.
If you have a narrow corridor flanked by skyscrapers or expensive shopping malls, you can't build a massive DDI or a sprawling cloverleaf. The single point urban interchange stays within a very tight "footprint." It’s vertical. It’s contained. It’s the "urban" in the name that really matters here.
- Pedestrian Safety: Honestly? SPUIs suck for walkers. Crossing a SPUI as a pedestrian is like trying to cross a runway during take-off. The distances are huge, and the lights are timed for cars, not human legs.
- Visibility: Because the turns are so wide, drivers sometimes get confused about which lane they belong in. You’ll often see "dashed" white lines painted through the intersection to keep people from drifting into each other.
- Lighting: You need specialized lighting because the center of the interchange can be a dark void at night, especially if it's an "underpass" style SPUI where the highway goes over the city street.
Real-World Performance
Look at the SPUIs in places like Salt Lake City or the suburbs of Chicago. These areas saw explosive growth in the 90s and 2000s. They couldn't just keep adding lanes. They needed to move more people through the same amount of space.
Research by the Federal Highway Administration (FHWA) suggests that a well-designed SPUI can handle up to 30% more traffic than a traditional tight diamond interchange. That’s the difference between a "Level of Service F" (failing) and a "Level of Service C" (stable flow). For a commuter, that's 15 minutes of your life back every single morning.
The Mental Load of Driving a SPUI
Let’s talk about the "human factor." Most drivers operate on muscle memory. When you approach a single point urban interchange, that memory glitches. You see a light in the middle of a bridge. You see cars turning left in front of you, but they are further away than they usually are.
This creates a momentary cognitive load.
Traffic psychologists have noted that while SPUIs are technically safer (fewer "conflict points" where cars can hit each other), the crashes that do happen tend to be high-angle or head-on because of the speeds involved in those wide-radius turns. It's a trade-off. You get fewer fender-benders but the potential for more severe impacts if someone runs a red light.
Most modern SPUIs now use "all-red" intervals. This means for a few seconds, every single light in every direction is red. It’s a safety buffer to ensure the massive "box" in the middle is completely empty before the next flow of traffic starts.
Technical Limitations and Future-Proofing
We are moving toward autonomous vehicles. How does a SPUI handle a self-driving car?
Actually, pretty well. SPUIs are highly predictable. They rely on clear lane markings and specific signal phases. For an AI, a single point urban interchange is a math problem it can solve in milliseconds. The wide turns are actually easier for sensors to track than sharp, 90-degree turns where a vehicle might momentarily lose sight of the curb or a pedestrian.
However, the cost remains the biggest barrier.
👉 See also: Water Droplets on Glass: Why They Stick, How They Move, and the Science of Seeing Through Them
- Bridge depth: The girders have to be incredibly thick to span the distance, which can sometimes require raising the entire grade of the surrounding roads.
- Drainage: Because the center of the interchange is a massive flat plane of concrete, getting water off the road during a rainstorm is a genuine engineering feat.
- Maintenance: If you need to fix a light or patch a hole in the middle of a SPUI, you basically have to shut down the entire interchange. There’s no "easy" way to divert traffic around the center point.
Making Sense of the Concrete
If you’re a city planner or just a curious driver, the takeaway is that the single point urban interchange is a tool for high-density survival. It isn't the solution for a quiet country road. It's the solution for the "big box" corridor where there's a Target on one corner, a Best Buy on the other, and 50,000 cars a day trying to get to the interstate.
It represents a shift in how we think about transit. We used to build out; now we build up and in. The SPUI is the peak of that philosophy. It’s dense. It’s efficient. It’s a little bit scary.
Actionable Insights for the Road
If you find yourself frequently navigating these interchanges, or if your local government is proposing one, keep these points in mind:
- Watch the Lines: Don't just look at the car in front of you. SPUIs have specific guide lines (bird-tracks) painted on the pavement. Follow them religiously to avoid "lane-drift" during those long, sweeping turns.
- Anticipate the Long Yellow: If you’re at the stop bar and the light turns yellow, do not floor it. The distance you have to cover is likely double what you’re used to. If you’re already in the intersection, maintain your speed to clear the zone.
- Check the Layout: If you are a pedestrian or cyclist, look for "cut-through" paths. Many modern SPUIs have dedicated tunnels or peripheral paths because the main intersection is simply too dangerous for non-vehicular traffic.
- Support the Investment: If your city is debating between a SPUI and a cheaper diamond interchange for a failing intersection, the SPUI is almost always the better long-term investment for traffic flow, despite the higher upfront construction cost.
The SPUI is a marvel of the "space-constrained" era of engineering. It’s not perfect, but it is a fascinating example of how geometry can be used to solve the literal gridlock of modern life. Next time you're sitting at that single, central light, take a look around. You're standing on a multi-million dollar piece of precision-engineered infrastructure designed specifically to keep you moving.
Next Steps for Implementation
For those involved in local transit advocacy or civil planning, start by requesting a "Conflict Point Analysis" for any proposed interchange. Compare the 24 conflict points of a traditional diamond to the 18 usually found in a single point urban interchange. Use this data to push for safer, high-capacity designs in your community's long-term transit plan. If land acquisition costs are projected to exceed 20% of the total project budget, the SPUI usually becomes the most fiscally responsible choice.
