You’re stuck on the side of a dirt road in Moab, or maybe just a suburban driveway on a Tuesday. Your tire is low. You reach for that cheap 12 volt dc air pump you bought on a whim, plug it into the cigarette lighter, and... nothing but a pathetic whine and a puff of smoke. It’s a classic scenario. Most people think these little motors are all built the same, but the reality of DC-powered compression is actually a bit of a mess of physics and marketing fluff.
The truth? Most portable pumps are toys.
If you want something that actually moves air—real volume—you have to understand the bridge between 12V current and heat dissipation. It's not just about "PSI." It's about CFM (Cubic Feet per Minute) and duty cycles. Honestly, if your pump doesn't have a cooling fin, it’s probably destined for the landfill.
The Bottleneck Nobody Mentions: Amps vs. Orifices
Why do some 12V pumps take ten minutes to fill a truck tire while others do it in two? It comes down to the draw. A standard cigarette lighter socket is usually fused at 10 or 15 amps. That is a massive limitation.
Physics is a stubborn thing. To compress air, you need torque. To get torque from a 12V DC motor, you need current. When a manufacturer limits a pump to 10 amps so it can fit a standard car plug, they are intentionally hobbling the motor. High-end units, like the ones from VIAIR or ARB, often skip the plug entirely. They use alligator clips to go straight to the battery. Why? Because they want 30 or 40 amps. That extra juice allows for a larger piston and a sturdier connecting rod.
If you're looking at a 12 volt dc air pump that claims it can do 150 PSI but plugs into your dashboard, it’s lying about its efficiency. It might reach 150 PSI eventually, but it’ll melt its own plastic gears before it gets there.
Heat is the Silent Killer
Air compression generates heat. A lot of it. As the piston moves, the friction and the actual molecular crowding of the air molecules create thermal energy. In a tiny DC housing, that heat has nowhere to go.
- Plastic vs. Metal: Cheap pumps use plastic cylinder walls. These warp. Once they warp, you lose the seal.
- Thermal Cut-offs: Better units have a thermal mass or a sensor that shuts the unit down before it desolders itself.
- Duty Cycle: This is a crucial spec. A 25% duty cycle means if it runs for 10 minutes, it needs to rest for 30. Most people ignore this until the smell of burning rubber hits their nose.
Understanding the "Oil-less" Revolution
Almost every modern 12 volt dc air pump used for tires or camping is "oil-less." This is actually a good thing for portability. You don't want oil leaking in your trunk. Instead, these pumps use a PTFE (Teflon) piston ring.
It’s a clever bit of engineering. The ring creates a tight seal against a stainless steel or aluminum cylinder wall without needing lubrication. But here’s the catch: once that Teflon wears down from dust or excessive heat, the pump is basically junk. There’s no "rebuilding" a $40 inflator. That’s why keeping the intake filter clean—if your pump even has one—is the single most important thing you can do for its lifespan.
Not All "Air" is the Same: High Pressure vs. High Volume
I see people make this mistake constantly. They buy a high-pressure tire pump to blow up an inflatable paddleboard or a giant lake float. They spend 45 minutes standing in the sun while the pump screams.
It’s the wrong tool.
A tire pump is designed for High Pressure, Low Volume (HPLV). It uses a small piston to jam air into a high-resistance environment. An air mattress or a SUP needs Low Pressure, High Volume (LPHV). For those, you want a centrifugal fan-style 12 volt dc air pump. These move massive amounts of air quickly but can’t push past 2 or 3 PSI.
🔗 Read more: Garmin Fenix 7X Pro: What Most People Get Wrong About the Solar Hype
If you try to use a tire inflator for a bouncy house, you’ll be there until next Christmas. If you try to use a mattress pump for a car tire, it’ll just stop working the second it feels any backpressure.
The Hybrid Models
Lately, companies like Ryobi or Milwaukee (and various generic brands on Amazon) have started making "dual-function" inflators. These have two separate motors inside. One is a tiny piston for tires; the other is a high-speed fan for inflatables. It’s a smart design, but it adds weight and complexity. If one side breaks, you're carrying around a heavy brick for half the functionality.
Why the Gauge on Your Pump is Probably Wrong
Don't trust the built-in dial. Seriously. Most integrated gauges on 12V pumps are off by 3 to 5 PSI. This happens because the gauge is measuring the pressure at the pump, not the pressure inside the tire.
When the pump is running, there’s a massive amount of "surge" pressure in the hose. To get an accurate reading, you have to turn the pump off and wait a second for the pressure to equalize. Or, better yet, use a dedicated standalone pencil or digital gauge. Over-inflating a tire because your cheap pump said 32 PSI when it was actually 40 is a great way to ruin your gas mileage and your ride quality.
Real World Testing: What Actually Lasts?
I've spent years looking at these things in off-road settings. If you’re a casual driver, a Slime or Kensun unit is fine for emergencies. They’re slow, they’re loud, but they work.
But if you’re airing down tires for sand or rock crawling, you need something like the VIAIR 88P. It clips to the battery. It has a metal head. It doesn't sound like a blender full of rocks.
Another weirdly good option is the Smittybilt 2781. It’s a beast. It’s heavy, it draws a lot of amps, but it moves air faster than some shop compressors. The downside? It’ll blow the fuse on a cheap car in heartbeat if you try to adapt it to a cigarette lighter.
The Cordless Integration
We can't talk about 12V DC without talking about batteries. Many modern pumps are now "12V-adjacent." They run on lithium-ion packs but charge via 12V. While the convenience is great, lithium batteries hate heat. Running a cordless pump on a 100-degree day to fill four truck tires is a recipe for a battery fire or at least a dead cell.
If you go cordless, make sure it has a 12V bypass—a cord that lets you run it off the car if the internal battery dies. Most don't have this. They either run on the battery or they don't run at all.
Specific Use Cases: Beyond Tires
- Air Suspension: Many custom cars use a permanent 12 volt dc air pump hooked to a tank. These need to be "100% duty cycle" rated.

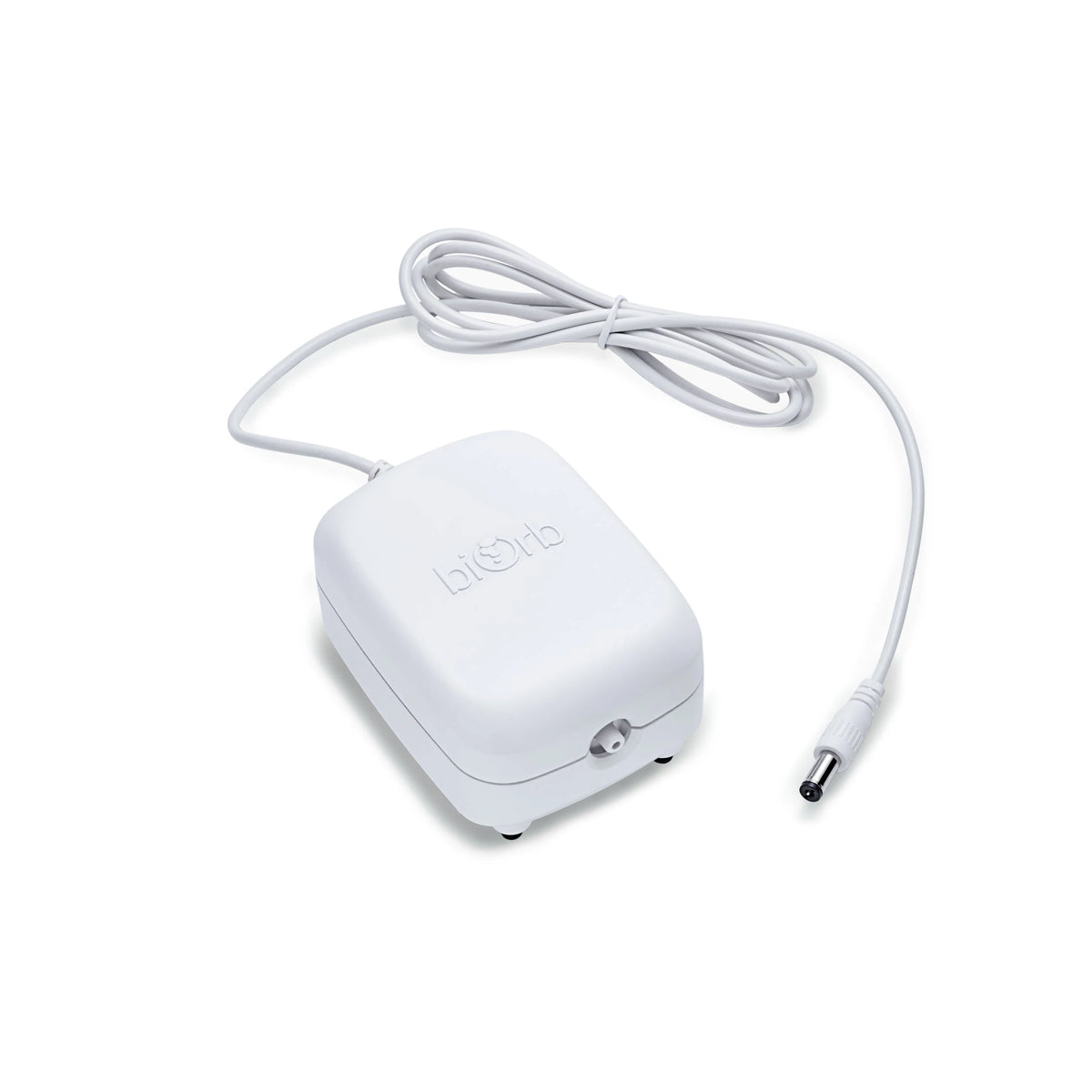

- Aquariums: In emergencies (power outages), hobbyists use tiny 12V diaphragm pumps to keep fish alive. These are silent and move almost no pressure, just bubbles.
- Pneumatic Tools: Forget it. A 12V pump won't run an impact wrench unless it's filling a massive 5-gallon tank, and even then, you’ll be waiting forever for it to recover.
How to Spot a Lemon
Before you buy, look at the weight. It sounds primitive, but weight equals copper and heat-sinking. If a pump feels like a hollow plastic shell, it is. Look for a threaded brass chuck instead of those plastic clip-on ones. Plastic clips leak. Brass threads don't.
Also, check the hose. If it's a thin, curly plastic straw, it will crack in the winter. Look for a rubber or braided hose that stays flexible when the temperature drops.
Actionable Next Steps
If you are ready to actually rely on a 12 volt dc air pump, stop looking at the cheapest option on the shelf and do this instead:
- Check your vehicle's fuse box: Find out the amperage of your 12V "Power Point." If it's 10A, buy a low-draw pump. If you want a fast pump, buy one with battery clamps.
- Verify the valve connector: If you have deep-dish wheels, a standard pump head might not fit. You may need an extension.
- Buy a separate gauge: Never rely on the pump's needle. A $10 digital gauge is more accurate than a $50 pump's internal sensor.
- Test it immediately: Don't wait for a flat tire in the rain. Plug it in today, see how hot the cord gets, and see how long it takes to add just 5 PSI. If it smells like burning plastic after two minutes, return it.
- Keep the engine running: Always run your car while using the pump. A high-draw 12V motor can drain a weak car battery faster than you’d think, leaving you with a full tire but a dead engine.
