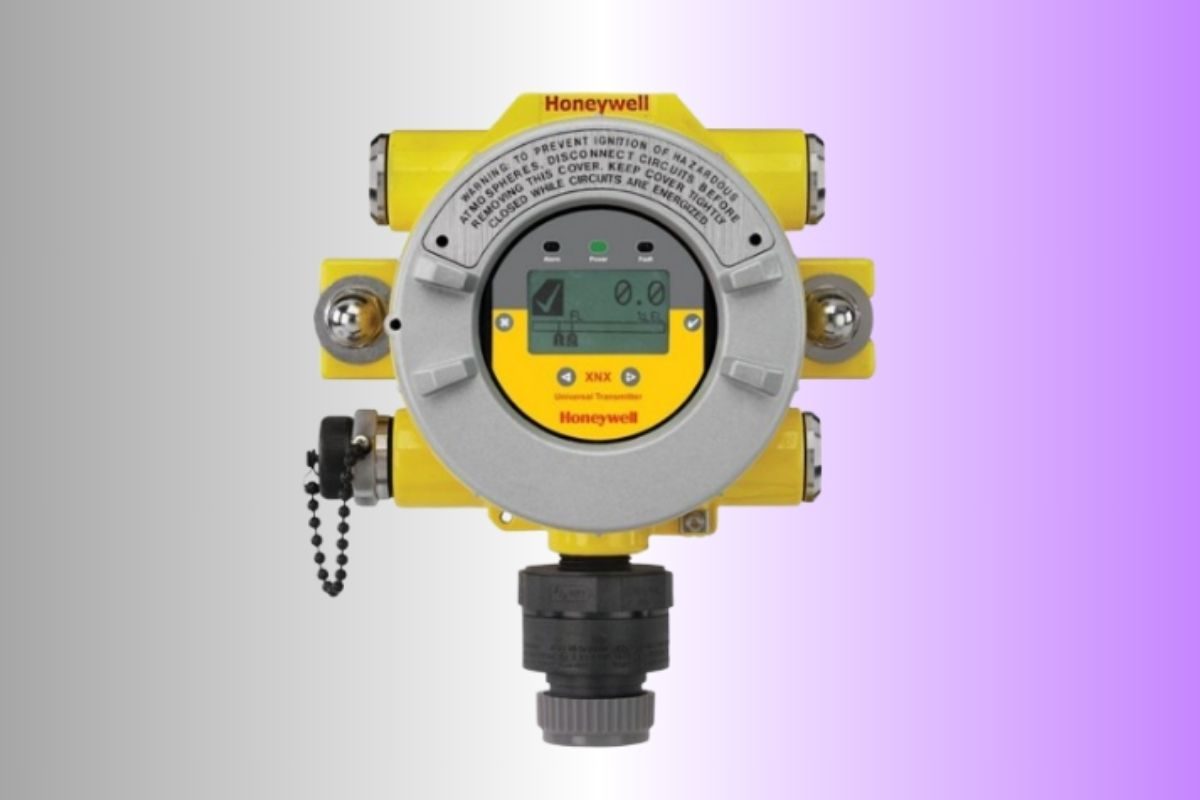

You're standing in front of a unit that costs a few thousand dollars, surrounded by high-stakes industrial machinery, and the LCD screen is staring back at you with a blank expression. It’s the Honeywell XNX. If you work in oil and gas, chemical processing, or wastewater, you know this transmitter is basically the "Swiss Army Knife" of gas detection. But here’s the thing: calling the Honeywell XNX gas detector calibration machine a "machine" is a bit of a misnomer. It’s an integrated transmitter. And if you don’t calibrate it correctly, you aren’t just looking at a "failed" test—you’re looking at a potential site disaster.
Calibration isn't just a box to check. It is the literal bridge between a sensor detecting a leak and your plant's emergency shutdown system actually firing. I’ve seen guys treat it like a simple smoke detector battery swap. It isn't.
Why Your XNX Gas Detector Drift Is Killing Your Accuracy
Sensors age. It’s a fact of physics. Whether you’re using electrochemical cells for toxic gases or infrared (IR) for hydrocarbons, the sensitivity degrades over time. This is called "sensor drift." The Honeywell XNX gas detector calibration machine (the transmitter itself) is designed to compensate for this, but only if you feed it the right data during the span and zero cycles.
Basically, the electrochemical sensors (like those for $H_2S$ or $CO$) rely on a chemical reaction that eventually "uses up" the electrolyte or the electrode material. If you aren't calibrating every 3 to 6 months, you’re basically guessing. Most people think they can stretch it to a year. You can't. Not if you value your life or your equipment.
The XNX is unique because it supports three different sensor technologies: Catalytic Bead, Electrochemical, and Infrared. Each one has a different "personality" during calibration. For instance, Catalytic Bead sensors are notorious for "poisoning" if they hit high concentrations of silicone or lead. If your sensor is poisoned, it doesn't matter how many times you run the calibration routine; the output will be flat. You have to know when to stop calibrating and start replacing.
The Magnetic Wand: A Love-Hate Relationship
One of the coolest—and most frustrating—features of the Honeywell XNX is the non-intrusive interface. You use a magnetic wand to navigate the menus through the glass. No need to open the housing. No need for a hot work permit. It’s great in theory.
In practice? If you’ve ever tried to calibrate an XNX in a sub-zero refinery in North Dakota while wearing thick gloves, you know the struggle. The "swipe" motion has to be precise.
👉 See also: Where the Power Is: Finding Every Nuclear Power Plant Map USA Locations Actually Show
Step-by-Step Zeroing (The Part People Rush)
First, you’ve gotta zero the thing. This tells the transmitter what "clean air" looks like.
- Swipe the magnetic wand over the 'v' (down) or '^' (up) sensors to navigate to the Calibration menu.
- Select "Zero."
- Make sure you are actually in clean air. If there’s even a trace of background gas, your zero is fake.
- If you aren't sure, use a "Zero Air" cylinder. Don't just trust the ambient atmosphere in a chemical plant. That’s rookie stuff.
The Span Calibration: Where the Real Work Happens
Once zeroed, you move to the Span. This is where you introduce a known concentration of gas—say, 50% LEL Methane or 25ppm $H_2S$—to the sensor. The Honeywell XNX gas detector calibration machine then compares what it thinks it sees to what you know is in the bottle.
Most people mess up the flow rate. If your regulator is pumping gas at 1.0 liter per minute (LPM) but the sensor only needs 0.5 LPM, you’re creating backpressure. That changes the reading. Honeywell usually recommends a flow rate between 0.5 and 1.0 LPM. Stick to it.
Also, check your tubing. If you’re calibrating for Chlorine ($Cl_2$) or Ammonia ($NH_3$), you can’t use standard Tygon tubing. Those gases are "sticky." They’ll adhere to the inside of the tube, and by the time the gas reaches the sensor, the concentration is lower than what’s on the bottle label. You need Teflon-lined tubing for those.
The "Failed Calibration" Nightmare
Sometimes the XNX just says "No." You’ll see a "Calibration Fault" or a "Span Fault."
Don't panic. Usually, it’s one of three things.
- Expired Gas: Check the date on your cylinder. Gas mixtures, especially toxics, don't last forever. $H_2S$ has a shelf life of about 12-24 months. $NO_2$ is even shorter.
- Wrong Gas Concentration: If the bottle says 50ppm but the XNX is expecting 25ppm, the "jump" is too big. The software thinks it’s an error and shuts down the process to prevent a bad calibration. You have to match the "Target Gas" setting in the XNX menu to the bottle in your hand.
- End-of-Life Sensor: If the "Raw Counts" on the diagnostic screen are too low, the sensor is just dead. It’s like trying to start a car with no spark plugs.
Pro-Tip: The "HART" Advantage
If you really want to be an expert, stop relying solely on the magnetic wand. Use a HART communicator or the Honeywell PC software. The Honeywell XNX gas detector calibration machine communicates via the HART protocol over the 4-20mA signal. This allows you to see the "Health" of the sensor in a percentage.
If your sensor health is at 15%, sure, it might pass calibration today. But it’ll probably fail next week. Knowing that ahead of time allows you to order the replacement before the unit goes into fault and shuts down your production line.
Cross-Sensitivity Is Real
Be careful with what else is in the air. For example, if you are calibrating a Carbon Monoxide sensor, but there is a high concentration of Hydrogen ($H_2$) nearby, the CO sensor might react to the $H_2$. This is cross-sensitivity. Always check the sensor data sheet to see what other gases might interfere with your calibration.
Actionable Steps for Your Next Maintenance Cycle
Don't just wing it. If you want your gas detection system to actually save lives, follow this protocol:
- Verify the Bottle: Match the gas type, concentration, and expiration date. Ensure the regulator is the correct flow rate (0.5LPM is the sweet spot for most XNX setups).
- Bump Test First: Before a full calibration, do a "Bump Test." Just apply gas and see if the sensor reacts. If it reacts quickly, you might not even need a full span, though most safety protocols require a full cal anyway.
- Zero with Precision: Use a Zero Air cylinder if you are in any industrial environment. Ambient air is rarely "pure."
- Wait for Stability: When applying the span gas, don't hit "Confirm" the second the numbers start moving. Wait for the reading to stabilize. This usually takes 30 to 90 seconds depending on the sensor type.
- Record the "As-Found" and "As-Left": This is for your auditors. You need to prove how much the sensor had drifted since the last visit.
- Check the Weather: Extreme humidity or temperature can affect calibration. If you’re calibrating in a rainstorm or 100-degree heat, note that. The XNX has internal temperature compensation, but it’s not magic.
Calibration isn't just about the Honeywell XNX gas detector calibration machine; it's about the technician's attention to detail. If you treat the hardware with respect and understand the chemistry behind the sensor, you’ll have a system that keeps your team safe and your plant running. Every time. No exceptions.
Check your sensor health logs today. If you haven't looked at the "Days Since Last Calibration" screen in the XNX menu, go do it now. If it’s over 180 days, you’re overdue. Get your gas bottles, check the regs, and get to work.
