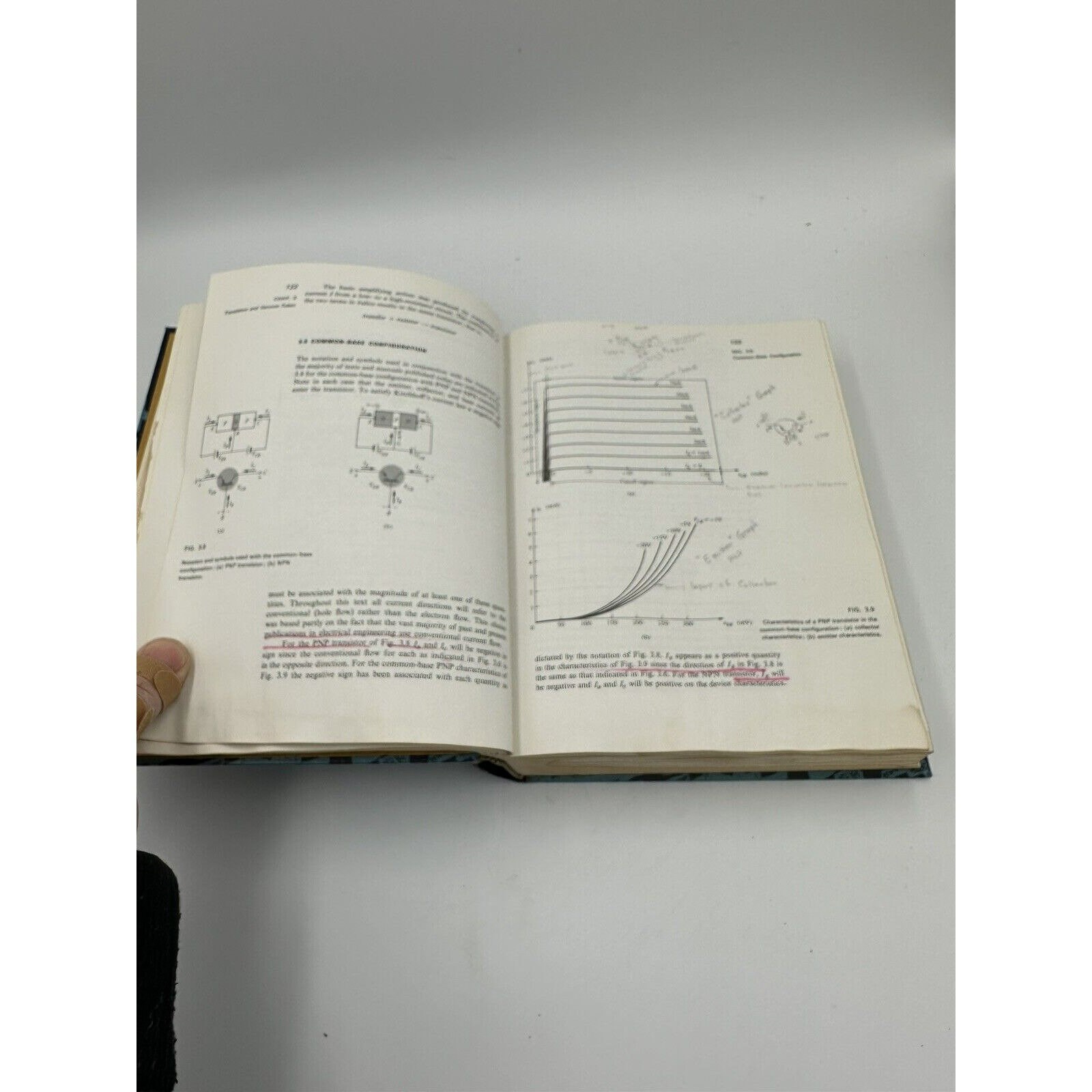

You probably don't think about Robert Boylestad or Louis Nashelsky when you're checking your phone or heating up a burrito. But if you've ever cracked open a textbook on electronic devices and circuit theory, those names are basically royalty. Most people treat hardware like magic. It isn't. It’s actually just a very controlled way of moving electrons through materials that sometimes want to cooperate and sometimes don't.
Understanding this stuff is the difference between being a "parts swapper" and a real engineer. Honestly, the world is moving so fast toward AI and high-level software that we’re kind of forgetting how the physical world actually works.
Why Electronic Devices and Circuit Theory Still Matters in 2026
Everything is getting smaller. We’re talking about transistors that are literally a few nanometers wide. At that scale, physics gets weird. Quantum tunneling starts messing with your signals, and heat becomes a nightmare. If you don't understand the fundamental electronic devices and circuit theory, you’re going to struggle when things go sideways in a design.
A lot of people think they can just use a simulator and call it a day. That’s a mistake. SPICE (Simulation Program with Integrated Circuit Emphasis) is a great tool, sure, but if you don't know the math behind a Bipolar Junction Transistor (BJT) or a Field Effect Transistor (FET), you won't know when the computer is lying to you. And computers lie a lot when the parameters aren't set perfectly.
The Semiconductor Reality Check
Silicon is the king, but it has limits. We use it because it’s cheap and we’re really good at making it. Basically, we take sand, melt it down, grow a giant crystal, and then slice it into wafers. Then we "dope" it with impurities like Boron or Phosphorus to change how it conducts electricity.
- N-type material has extra electrons.
- P-type material has "holes" (where an electron should be but isn't).
- Put them together, and you get a PN junction.
This simple junction is the soul of every diode and transistor ever made. It’s the original "valve" for electricity. Without the PN junction, there is no digital logic. No logic means no internet, no memes, and no modern medicine. It’s that serious.
Breaking Down the Circuit Theory Essentials
Circuit theory isn't just about memorizing Ohm's Law ($V = IR$). It’s about understanding energy flow. You’ve got your passive components—resistors, capacitors, and inductors. They don't need external power to do their thing. Then you have active devices like transistors and op-amps.
The DC vs. AC Headache
Most beginners start with DC (Direct Current). It’s steady. It’s predictable. You calculate your voltages, and you move on. But then AC (Alternating Current) enters the room, and suddenly you’re dealing with phase shifts, impedance, and complex numbers.
$$Z = R + jX$$
That little "$j$" represents the imaginary unit. It sounds fake, but it’s the only way to accurately describe how a capacitor or inductor resists current over time. If you’re designing a power supply for a high-end gaming PC, you’re constantly juggling these values to make sure the ripple voltage doesn't fry a $2,000 GPU.
📖 Related: Why Have You Tried Turning It Off And On Again Is Actually Genius Advice
Transistors: The Switch That Changed Everything
Think about a BJT. You have three pins: Emitter, Base, and Collector. By putting a tiny amount of current into the Base, you control a much larger current flowing between the Collector and Emitter. It’s an amplifier. It’s a switch. It’s everything.
- Cutoff Region: The transistor is off. No current.
- Saturation Region: It’s wide open. Full current.
- Active Region: This is the sweet spot for amplification.
Most modern tech relies more on MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) because they are way more efficient at switching and don't draw much current at the gate. If your phone used only old-school BJTs, it would probably melt in your pocket within ten minutes.
Common Misconceptions About Circuit Theory
People often think that "ground" is some magical place where electricity disappears. It’s not. Ground is just a reference point. In a car, the metal frame is the ground. In a plane, it's different. If you have a "noisy" ground, your whole circuit will act like it's possessed.
Another big one? Thinking that wires have zero resistance. In high-frequency circuits, the physical length of a trace on a PCB (Printed Circuit Board) acts like an inductor. It can literally turn your circuit into a radio transmitter that you didn't want. This is why "Signal Integrity" is a whole career path now.
The Role of Operational Amplifiers (Op-Amps)
If the transistor is the brick, the Op-Amp is the pre-fab wall. It’s an integrated circuit that makes life incredibly easy. You can use them to add signals together, subtract them, or even integrate and differentiate math functions in real-time.
They have nearly infinite input impedance. That means they don't "load" the circuit they are measuring. It’s like a silent observer that can boost a signal from a tiny sensor—like the one measuring your heart rate in a smartwatch—into something a microprocessor can actually read.
Real-World Applications You Actually Care About
Let's talk about EVs (Electric Vehicles). An EV isn't just a big battery and a motor. It’s a massive exercise in electronic devices and circuit theory. You have "Power Electronics" which involves handling hundreds of amps of current without exploding.
The Inverter takes the DC from the battery and turns it into 3-phase AC for the motor. It uses something called an IGBT (Insulated-Gate Bipolar Transistor). It’s basically a hybrid between a BJT and a MOSFET. It handles the high voltage of a BJT but has the easy control of a MOSFET gate.
Then there’s your smartphone’s fast charging. That’s Gallium Nitride (GaN) technology. GaN is a "wide-bandgap" semiconductor. It’s way more efficient than silicon, which is why your 65W charger is now the size of a lemon instead of a brick.
How to Actually Master This Topic
Don't just read the book. You’ll fall asleep.
Get a breadboard. Buy a cheap multimeter. Burn a couple of LEDs by forgetting the current-limiting resistor. Seriously, the smell of "magic smoke" is the best teacher you'll ever have. When you see a circuit fail in real life, the theory in the textbook suddenly makes a lot more sense.
- Step 1: Learn KVL and KCL (Kirchhoff’s Laws). They are the "Conservation of Energy" for circuits.
- Step 2: Understand the Diode. It’s the simplest semiconductor. Master it before moving to transistors.
- Step 3: Build a small audio amplifier. It’s satisfying and teaches you about biasing and gain.
- Step 4: Use an Oscilloscope. Seeing the waveform is a game-changer. It’s like going from being blind to having 20/20 vision.
The Future of Hardware
We’re hitting a wall with silicon. Engineers are looking at Carbon Nanotubes and 2D materials like Graphene. But here’s the kicker: the electronic devices and circuit theory used to describe these new materials is mostly the same as the stuff we used in the 70s. The math doesn't change; only the materials do.
Whether we move to optical computing or stay with electrons, the fundamentals of how we manipulate energy to represent information remain constant. If you know the theory, you’re future-proof.
Actionable Next Steps for Enthusiasts and Students
If you want to move beyond just "knowing" and start "doing," here is a logical path to take.
First, download a free version of LTspice. It’s the industry standard for simulating circuits. Start by modeling a simple voltage divider. Then, try to model a bridge rectifier—the circuit that turns the AC from your wall outlet into DC.
Second, look up the "Art of Electronics" by Horowitz and Hill. It’s the "Bible" for people who actually build things. It skips the boring academic fluff and gets straight into why circuits work or fail.
Third, get a "Development Board" like an Arduino or ESP32, but don't just use the digital pins. Use the Analog-to-Digital Converters (ADC). Build a sensor circuit that requires a transistor to drive a motor. That’s where the real learning happens.
Finally, stay curious about the "Why." Why did that capacitor explode? Why is that trace getting hot? The answers are always found in the theory. Hardware is hard, but it’s also the most rewarding thing you can build because it’s real. You can touch it. You can see it work. And when it does, it feels like you've successfully negotiated with the laws of physics.
